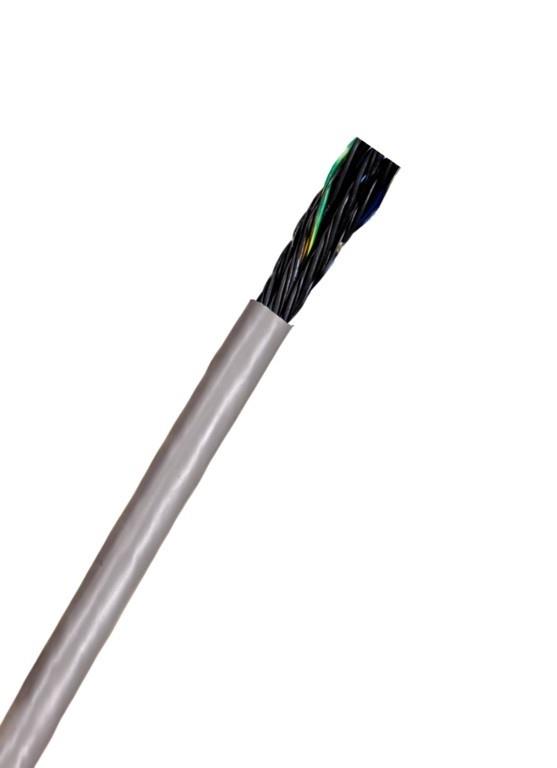

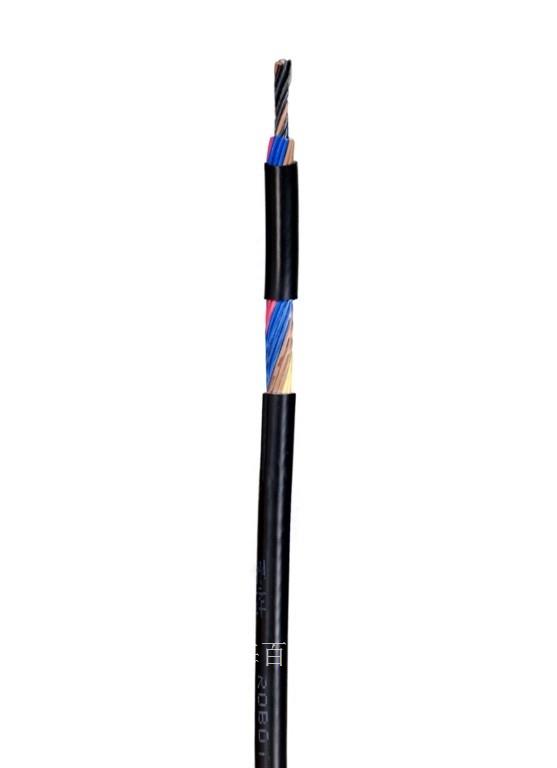

CE屏蔽电缆
价        格：面议
有 效 期： 长期有效
所 在 地： 上海市奉贤区
配送信息： 平邮(10.00元) ，快递(30.00元)
EMS(50.00元) ，物流中转(100.00元)
供应数量：99999999
了解详情，请立即咨询！



      1  2  3  4  5
该公司共有 5条同类“CE认证电线电缆”信息       查看全部>>
详细说明
型号 规格 导体根数 单根导体直径φ 近似密度公斤/KM 标称外径
 外径下限mm 外径上限mm
?
H05VVC4V5-K 0.5*2C 28 0.15 53.5 7.9       7.6  8.4
H05VVC4V5-K 0.5*3C 28 0.15 65.4 8.3       8.0  8.8
H05VVC4V5-K 0.5*4C 28 0.15 79.2 8.9       8.6  9.4
H05VVC4V5-K 0.5*5C 28 0.15 93.6 9.5       9.2  10.0
H05VVC4V5-K 0.5*6C 28 0.15 107.6 10.1       9.6  11.1
H05VVC4V5-K 0.5*7C 28 0.15 123.8 10.9      10.4  11.9
H05VVC4V5-K 0.5*8C 28 0.15 142.9 12      11.5  13.0
H05VVC4V5-K 0.5*9C 28 0.15 152.3 12      11.5  13.0
H05VVC4V5-K 0.5*10C 28 0.15 169.5 12.8      12.3  13.8
H05VVC4V5-K 0.5*11C 28 0.15 183 13.2      12.7  14.2
H05VVC4V5-K 0.5*12C 28 0.15 192.4 13.2      12.7  14.2
H05VVC4V5-K 0.5*13C 28 0.15 209 13.9      13.4  14.9
H05VVC4V5-K 0.5*14C 28 0.15 218.4 13.9      13.4  14.9
H05VVC4V5-K 0.5*15C 28 0.15 236 14.7      14.2  15.7
H05VVC4V5-K 0.5*16C 28 0.15 245.4 14.7      14.2  15.7
H05VVC4V5-K 0.5*17C 28 0.15 263.9 15.5      14.5  17.0
H05VVC4V5-K 0.5*18C 28 0.15 273.3 15.5      14.5  17.0
H05VVC4V5-K 0.5*19C 28 0.15 282.7 15.5      14.5  17.0
H05VVC4V5-K 0.5*20C 28 0.15 314.8 17.4      16.4  18.9
H05VVC4V5-K 0.5*21C 28 0.15 324.2 17.4      16.4  18.9
H05VVC4V5-K 0.5*22C 28 0.15 333.6 17.4      16.4  18.9
H05VVC4V5-K 0.5*23C 28 0.15 353.4 18.2      17.2  19.7
H05VVC4V5-K 0.5*24C 28 0.15 362.7 18.2      17.2  19.7
H05VVC4V5-K 0.5*25C 28 0.15 377.6 18.6      17.6  20.1
H05VVC4V5-K 0.5*26C 28 0.15 387 18.6      17.6  20.1
H05VVC4V5-K 0.5*27C 28 0.15 396.4 18.6      17.6  20.1
H05VVC4V5-K 0.5*28C 28 0.15 415.3 19.3      18.3  20.8
H05VVC4V5-K 0.5*29C 28 0.15 424.7 19.3      18.3  20.8
H05VVC4V5-K 0.5*30C 28 0.15 434.1 19.3      18.3  20.8
H05VVC4V5-K 0.5*31C 28 0.15 454.3 20.1      18.6  21.6
H05VVC4V5-K 0.5*32C 28 0.15 463.7 20.1      18.6  21.6
H05VVC4V5-K 0.5*33C 28 0.15 473 20.1      18.6  21.6
H05VVC4V5-K 0.5*34C 28 0.15 494.2 20.9      19.4  22.4
H05VVC4V5-K 0.5*35C 28 0.15 503.5 20.9      19.4  22.4
H05VVC4V5-K 0.5*36C 28 0.15 512.9 20.9      19.4  22.4
H05VVC4V5-K 0.5*37C 28 0.15 522.3 20.9      19.4  22.4
　 　 　 　 　 　 　 　
H05VVC4V5-K 0.75*2C 24 0.2 67 8.7       8.4  9.2
H05VVC4V5-K 0.75*3C 24 0.2 83.4 9.1       8.8  9.6
H05VVC4V5-K 0.75*4C 24 0.2 102.2 9.9       9.6  10.4
H05VVC4V5-K 0.75*5C 24 0.2 121.4 10.6      10.1  11.6
H05VVC4V5-K 0.75*6C 24 0.2 143 11.5      11.0  12.5
H05VVC4V5-K 0.75*7C 24 0.2 165.1 12.5      12.0  13.5
H05VVC4V5-K 0.75*8C 24 0.2 191.1 13.7      13.2  14.7
H05VVC4V5-K 0.75*9C 24 0.2 204.3 13.7      13.2  14.7
H05VVC4V5-K 0.75*10C 24 0.2 227.7 14.7      14.2  15.7
H05VVC4V5-K 0.75*11C 24 0.2 246.4 15.2      14.2  16.7
H05VVC4V5-K 0.75*12C 24 0.2 259.7 15.2      14.2  16.7
H05VVC4V5-K 0.75*13C 24 0.2 282.4 16      15.0  17.5
H05VVC4V5-K 0.75*14C 24 0.2 295.6 16      15.0  17.5
H05VVC4V5-K 0.75*15C 24 0.2 319.8 16.9      15.9  18.4
H05VVC4V5-K 0.75*16C 24 0.2 333.1 16.9      15.9  18.4
H05VVC4V5-K 0.75*17C 24 0.2 358.3 17.8      16.8  19.3
H05VVC4V5-K 0.75*18C 24 0.2 371.5 17.8      16.8  19.3
H05VVC4V5-K 0.75*19C 24 0.2 384.8 17.8      16.8  19.3
H05VVC4V5-K 0.75*20C 24 0.2 428.1 20.1      18.6  21.6
H05VVC4V5-K 0.75*21C 24 0.2 441.4 20.1      18.6  21.6
H05VVC4V5-K 0.75*22C 24 0.2 454.6 20.1      18.6  21.6
H05VVC4V5-K 0.75*23C 24 0.2 481.7 21      19.5  22.5
H05VVC4V5-K 0.75*24C 24 0.2 494.9 21      19.5  22.5
H05VVC4V5-K 0.75*25C 24 0.2 515.5 21.5      20.0  23.0
H05VVC4V5-K 0.75*26C 24 0.2 528.8 21.5      20.0  23.0
H05VVC4V5-K 0.75*27C 24 0.2 542 21.5      20.0  23.0
H05VVC4V5-K 0.75*28C 24 0.2 567.9 22.3      20.8  23.8
H05VVC4V5-K 0.75*29C 24 0.2 581.2 22.3      20.8  23.8
H05VVC4V5-K 0.75*30C 24 0.2 594.4 22.3      20.8  23.8
H05VVC4V5-K 0.75*31C 24 0.2 622.1 23.2      21.7  24.7
H05VVC4V5-K 0.75*32C 24 0.2 635.3 23.2      21.7  24.7
H05VVC4V5-K 0.75*33C 24 0.2 648.5 23.2      21.7  24.7
H05VVC4V5-K 0.75*34C 24 0.2 677.4 24.2      22.7  25.7
H05VVC4V5-K 0.75*35C 24 0.2 690.7 24.2      22.7  25.7
H05VVC4V5-K 0.75*36C 24 0.2 703.9 24.2      22.7  25.7
H05VVC4V5-K 0.75*37C 24 0.2 717.2 24.2      22.7  25.7
　 　 　 　 　 　 　 　
H05VVC4V5-K 1.0*2C 32 0.2 73.7 8.8       8.5  9.3
H05VVC4V5-K 1.0*3C 32 0.2 94 9.33       9.0  9.8
H05VVC4V5-K 1.0*4C 32 0.2 117.5 10.22       9.7  11.2
H05VVC4V5-K 1.0*5C 32 0.2 143.1 11.3      10.8  12.3
H05VVC4V5-K 1.0*6C 32 0.2 169 12.33      11.8  13.3
H05VVC4V5-K 1.0*7C 32 0.2 195.5 13.36      12.9  14.4
H05VVC4V5-K 1.0*8C 32 0.2 226.4 14.73      14.2  15.7
H05VVC4V5-K 1.0*9C 32 0.2 242.7 14.73      14.2  15.7
H05VVC4V5-K 1.0*10C 32 0.2 270.7 15.76      14.8  17.3
H05VVC4V5-K 1.0*11C 32 0.2 293.3 16.29      15.3  17.8
H05VVC4V5-K 1.0*12C 32 0.2 309.6 16.29      15.3  17.8
H05VVC4V5-K 1.0*13C 32 0.2 336.8 17.18      16.2  18.7
H05VVC4V5-K 1.0*14C 32 0.2 353.2 17.18      16.2  18.7
H05VVC4V5-K 1.0*15C 32 0.2 382.1 18.17      17.2  19.7
H05VVC4V5-K 1.0*16C 32 0.2 398.4 18.17      17.2  19.7
H05VVC4V5-K 1.0*17C 32 0.2 428.5 19.2      18.2  20.7
H05VVC4V5-K 1.0*18C 32 0.2 444.9 19.2      18.2  20.7
H05VVC4V5-K 1.0*19C 32 0.2 461.2 19.2      18.2  20.7
H05VVC4V5-K 1.0*20C 32 0.2 512.3 21.6      20.1  23.1
H05VVC4V5-K 1.0*21C 32 0.2 528.6 21.6      20.1  23.1
H05VVC4V5-K 1.0*22C 32 0.2 544.9 21.6      20.1  23.1
H05VVC4V5-K 1.0*23C 32 0.2 577.2 22.63      21.1  24.1
H05VVC4V5-K 1.0*24C 32 0.2 593.6 22.63      21.1  24.1
H05VVC4V5-K 1.0*25C 32 0.2 618.3 23.16      21.7  24.7
H05VVC4V5-K 1.0*26C 32 0.2 634.7 23.16      21.7  24.7
H05VVC4V5-K 1.0*27C 32 0.2 651 23.16      21.7  24.7
H05VVC4V5-K 1.0*28C 32 0.2 682 24.05      22.6  25.6
H05VVC4V5-K 1.0*29C 32 0.2 698.3 24.05      22.6  25.6
H05VVC4V5-K 1.0*30C 32 0.2 714.6 24.05      22.6  25.6
H05VVC4V5-K 1.0*31C 32 0.2 747.6 25.03      23.5  26.5
H05VVC4V5-K 1.0*32C 32 0.2 763.9 25.03      23.5  26.5
H05VVC4V5-K 1.0*33C 32 0.2 780.3 25.03      23.5  26.5
H05VVC4V5-K 1.0*34C 32 0.2 814.7 26.06      24.6  27.6
H05VVC4V5-K 1.0*35C 32 0.2 831.1 26.06      24.6  27.6
H05VVC4V5-K 1.0*36C 32 0.2 847.4 26.06      24.6  27.6
H05VVC4V5-K 1.0*37C 32 0.2 863.7 26.06      24.6  27.6
　 　 　 　 　 　 　 　
H05VVC4V5-K 1.5*2C 48 0.2 97.6 10.1       9.6  11.1
H05VVC4V5-K 1.5*3C 48 0.2 126 10.7      10.2  11.7
H05VVC4V5-K 1.5*4C 48 0.2 158.5 11.8      11.3  12.8
H05VVC4V5-K 1.5*5C 48 0.2 192.7 12.9      12.4  13.9
H05VVC4V5-K 1.5*6C 48 0.2 228.3 14.1      13.6  15.1
H05VVC4V5-K 1.5*7C 48 0.2 264.8 15.4      14.4  16.9
H05VVC4V5-K 1.5*8C 48 0.2 307.2 17      16.0  18.5
H05VVC4V5-K 1.5*9C 48 0.2 330.4 17      16.0  18.5
H05VVC4V5-K 1.5*10C 48 0.2 369 18.2      17.2  19.7
H05VVC4V5-K 1.5*11C 48 0.2 400.4 18.8      17.8  20.3
H05VVC4V5-K 1.5*12C 48 0.2 423.6 18.8      17.8  20.3
H05VVC4V5-K 1.5*13C 48 0.2 461.2 19.9      18.9  21.4
H05VVC4V5-K 1.5*14C 48 0.2 484.4 19.9      18.9  21.4
H05VVC4V5-K 1.5*15C 48 0.2 524.3 21      19.5  22.5
H05VVC4V5-K 1.5*16C 48 0.2 547.4 21      19.5  22.5
H05VVC4V5-K 1.5*17C 48 0.2 589 22.2      20.7  23.7
H05VVC4V5-K 1.5*18C 48 0.2 612.2 22.2      20.7  23.7
H05VVC4V5-K 1.5*19C 48 0.2 635.3 22.2      20.7  23.7
H05VVC4V5-K 1.5*20C 48 0.2 704.9 25      23.5  26.5
H05VVC4V5-K 1.5*21C 48 0.2 728.1 25      23.5  26.5
H05VVC4V5-K 1.5*22C 48 0.2 751.3 25      23.5  26.5
H05VVC4V5-K 1.5*23C 48 0.2 795.8 26.3      24.8  27.8
H05VVC4V5-K 1.5*24C 48 0.2 819 26.3      24.8  27.8
H05VVC4V5-K 1.5*25C 48 0.2 853.5 26.9      25.4  28.4
H05VVC4V5-K 1.5*26C 48 0.2 876.6 26.9      25.4  28.4
H05VVC4V5-K 1.5*27C 48 0.2 899.8 26.9      25.4  28.4
H05VVC4V5-K 1.5*28C 48 0.2 942.6 27.9      26.4  29.4
H05VVC4V5-K 1.5*29C 48 0.2 965.7 27.9      26.4  29.4
H05VVC4V5-K 1.5*30C 48 0.2 988.9 27.9      26.4  29.4
H05VVC4V5-K 1.5*31C 48 0.2 1034.5 29.1      27.6  30.6
H05VVC4V5-K 1.5*32C 48 0.2 1057.6 29.1      27.6  30.6
H05VVC4V5-K 1.5*33C 48 0.2 1080.8 29.1      27.6  30.6
H05VVC4V5-K 1.5*34C 48 0.2 1128.3 30.3      28.8  31.8
H05VVC4V5-K 1.5*35C 48 0.2 1151.5 30.3      28.8  31.8
H05VVC4V5-K 1.5*36C 48 0.2 1174.6 30.3      28.8  31.8
H05VVC4V5-K 1.5*37C 48 0.2 1197.8 30.3      28.8  31.8
　 　 　 　 　 　 　 　
H05VVC4V5-K 2.5*2C 80 0.2 140.5 12      11.5  13.0
H05VVC4V5-K 2.5*3C 80 0.2 184.2 12.8      12.3  13.8
H05VVC4V5-K 2.5*4C 80 0.2 233.8 14.1      13.6  15.1
H05VVC4V5-K 2.5*5C 80 0.2 285.9 15.5      14.5  17.0
H05VVC4V5-K 2.5*6C 80 0.2 340.1 17      16.0  18.5
H05VVC4V5-K 2.5*7C 80 0.2 395.6 18.5      17.5  20.0
H05VVC4V5-K 2.5*8C 80 0.2 459.6 20.5      19.0  22.0
H05VVC4V5-K 2.5*9C 80 0.2 496 20.5      19.0  22.0
H05VVC4V5-K 2.5*10C 80 0.2 554.7 22      20.5  23.5
H05VVC4V5-K 2.5*11C 80 0.2 603 22.7      21.2  24.2
H05VVC4V5-K 2.5*12C 80 0.2 639.4 22.7      21.2  24.2
H05VVC4V5-K 2.5*13C 80 0.2 696.8 24      22.5  25.5
H05VVC4V5-K 2.5*14C 80 0.2 733.1 24      22.5  25.5
H05VVC4V5-K 2.5*15C 80 0.2 793.8 25.4      23.9  26.9
H05VVC4V5-K 2.5*16C 80 0.2 830.2 25.4      23.9  26.9
H05VVC4V5-K 2.5*17C 80 0.2 893.4 26.9      25.4  28.4
H05VVC4V5-K 2.5*18C 80 0.2 929.7 26.9      25.4  28.4
H05VVC4V5-K 2.5*19C 80 0.2 966.1 26.9      25.4  28.4
H05VVC4V5-K 2.5*20C 80 0.2 1070.4 30.4      28.9  31.9
H05VVC4V5-K 2.5*21C 80 0.2 1106.8 30.4      28.9  31.9
H05VVC4V5-K 2.5*22C 80 0.2 1143.1 30.4      28.9  31.9
　 　 　 　 　 　 　 　
H05VVC4V5-K 4.0*2C 82 0.25 197.4 13.60       13.1  14.6
H05VVC4V5-K 4.0*3C 82 0.25 261.6 14.50       14.0  15.5
H05VVC4V5-K 4.0*4C 82 0.25 334 16.00       15.0  17.5
H05VVC4V5-K 4.0*5C 82 0.25 410 17.70       16.7  19.2
H05VVC4V5-K 4.0*6C 82 0.25 489.1 19.40       18.4  20.9
H05VVC4V5-K 4.0*7C 82 0.25 570.2 21.10       19.6  22.6
H05VVC4V5-K 4.0*8C 82 0.25 663.4 23.40       21.9  24.9
H05VVC4V5-K 4.0*9C 82 0.25 717.4 23.40       21.9  24.9
H05VVC4V5-K 4.0*10C 82 0.25 803.1 25.20       23.7  26.7
H05VVC4V5-K 4.0*11C 82 0.25 874.2 26.10       24.6  27.6
H05VVC4V5-K 4.0*12C 82 0.25 928.2 26.10       24.6  27.6
H05VVC4V5-K 4.0*13C 82 0.25 1012.2 27.60       26.1  29.1
H05VVC4V5-K 4.0*14C 82 0.25 1066.2 27.60       26.1  29.1
H05VVC4V5-K 4.0*15C 82 0.25 1155 29.20       27.7  30.7
H05VVC4V5-K 4.0*16C 82 0.25 1209 29.20       27.7  30.7
H05VVC4V5-K 4.0*17C 82 0.25 1301.4 31.00       29.5  32.5
H05VVC4V5-K 4.0*18C 82 0.25 1355.4 31.00       29.5  32.5
H05VVC4V5-K 4.0*19C 82 0.25 1409.4 31.00       29.5  32.5
　 　 　 　 　 　 　 　
H05VVC4V5-K 6.0*2C 80 0.31 256 15.5      14.5  17.0
H05VVC4V5-K 6.0*3C 80 0.31 344 16.5      15.5  18.0
H05VVC4V5-K 6.0*4C 80 0.31 442 18.3      17.3  19.8
H05VVC4V5-K 6.0*5C 80 0.31 544.3 20.2      18.7  21.7
H05VVC4V5-K 6.0*6C 80 0.31 650.3 22.2      20.7  23.7
H05VVC4V5-K 6.0*7C 80 0.31 758.9 24.2      22.7  25.7
H05VVC4V5-K 6.0*8C 80 0.31 882.1 26.9      25.4  28.4
H05VVC4V5-K 6.0*9C 80 0.31 958 26.9      25.4  28.4
H05VVC4V5-K 6.0*10C 80 0.31 1072.3 29      27.5  30.5
　 　 　 　 　 　 　 　
H05VVC4V5-K 10.0*2C 80 0.4 408.6 20      19.0  21.5
H05VVC4V5-K 10.0*3C 80 0.4 550.5 21.3      19.8  22.8
H05VVC4V5-K 10.0*4C 80 0.4 709 23.7      22.2  25.2
H05VVC4V5-K 10.0*5C 80 0.4 874.9 26.2      24.7  27.7
H05VVC4V5-K 10.0*6C 80 0.4 1047.2 28.9      27.4  30.4
H05VVC4V5-K 10.0*7C 80 0.4 1223.8 31.5      30.0  33.0
　 　 　 　 　 　 　 　
H05VVC4V5-K 16.0*2C 127 0.4 594.2 23.5      22.0  25.0
H05VVC4V5-K 16.0*3C 127 0.4 809.6 25.1      23.6  26.6
H05VVC4V5-K 16.0*4C 127 0.4 1047.8 27.9      26.4  29.4
H05VVC4V5-K 16.0*5C 127 0.4 1296.5 30.9      29.4  32.4
? ? ? ? ? ? 　 　
H05VVC4V5-K 25.0*2C 199 0.4 880.81 28.59      27.1  30.1
H05VVC4V5-K 25.0*3C 199 0.4 1206.46 30.62      29.1  32.1


推荐浏览
71900拖链系统用高柔性PUR护套控制电缆
71900拖链系统用高柔性PUR护套控制电缆
面议 /千米
71973拖链系统用高柔屏蔽型PUR控制电缆
71973拖链系统用高柔屏蔽型PUR控制电缆
面议 /千米
2PFG 1169
2PFG 1169
面议 /千米
VCTF
VCTF
面议 /千米
YFFB行车起重电缆
YFFB行车起重电缆
面议 /千米

免责声明：本商铺所展示的信息由企业自行提供，内容的真实性、准确性和合法性由发布企业负责，一比多公司对此不承担任何保证责任。

友情提醒：为保障您的利益，降低您的风险，建议优先选择商机宝付费会员的产品和服务。


上海百胜特种电缆股份有限公司   地址：上海市奉贤区金钱公路4839号   邮政编码：201319
联系人：靳先生   电话：021-57590181   手机：13301951568   传真：021-57590185
 技术支持：一比多  |  免责声明 | 隐私声明
增值电信业务经营许可证：沪B2－20070060     网站Icp备案号：沪ICP备05000175号
隐藏
隐藏
<%---站点编号 ----%> <%---页面编号 ----%> <%---页面参数1 ----%> <%---页面参数2----%> <%---页面参数3 ----%>
